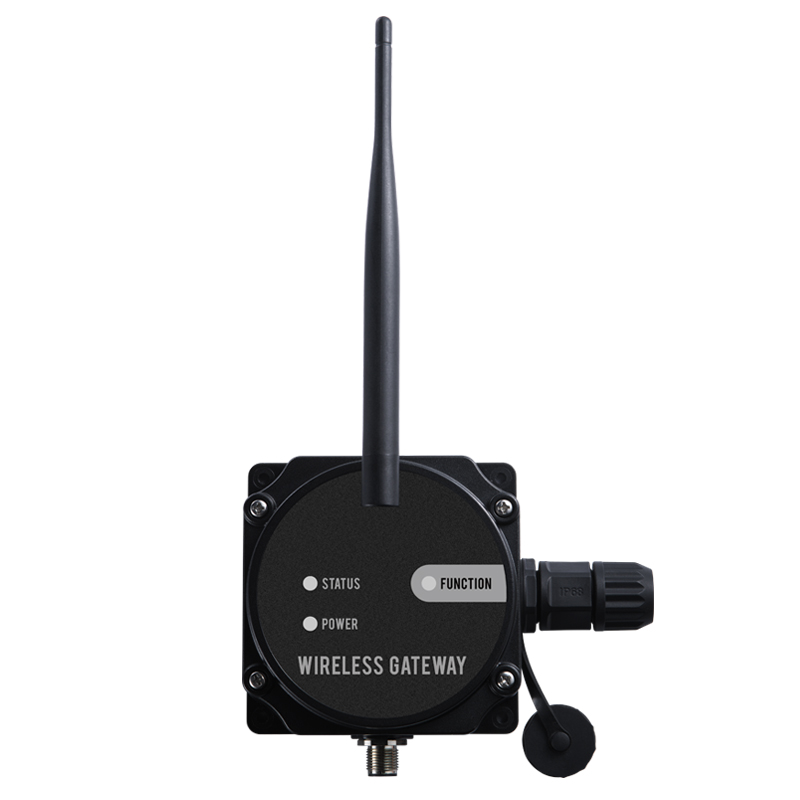

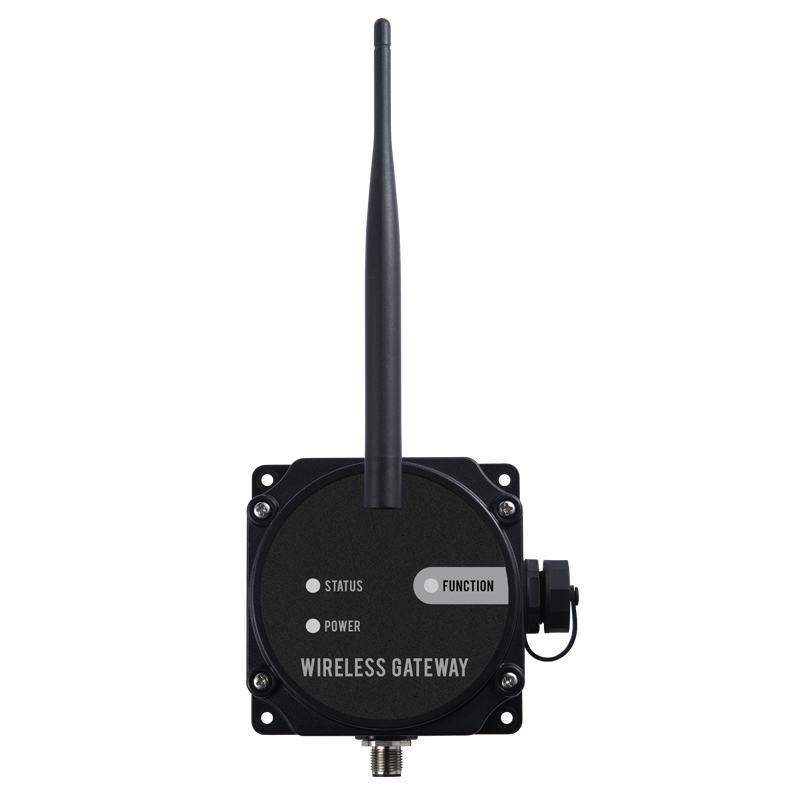

LoRa Gateway
WW-3NEM / WW-3NEM-P (Power over Ethernet)
WW-3NE5 / WW-3NE5-P (Power over Ethernet)
Built for industrial and outdoor applications, the WW-3NEM / WW-3NE5 Series combines LoRa wireless transmission with Ethernet networking in a compact IP68-rated enclosure. Optional PoE models simplify installation while supporting stable data communication in harsh environments.
The WW-3NEM / WW-3NE5 Series is designed for industrial monitoring, utility infrastructure, environmental sensing, and remote automation applications where stable long-distance communication is required.
The gateway supports LoRa wireless communication with up to 2W RF output power and receiver sensitivity up to –137 dBm, helping extend communication coverage in outdoor environments. Integrated Ethernet connectivity allows field data to be forwarded to remote servers or cloud platforms through TCP, UDP, or MQTT protocols.
Equipped with RS-485, analog input, digital input, and digital output interfaces, the series can connect with industrial sensors, controllers, meters, and automation equipment. AES 128 / 256 encryption helps improve communication security during data transmission.
For simplified deployment, the WW-3NEM-P and WW-3NE5-P models support Power over Ethernet (PoE), allowing both power and network communication through a single Ethernet cable.
With an IP68-rated flame-retardant enclosure and operating temperature range of –40°C to 85°C, the WW-3NEM / WW-3NE5 Series is suitable for demanding outdoor and industrial environments.
