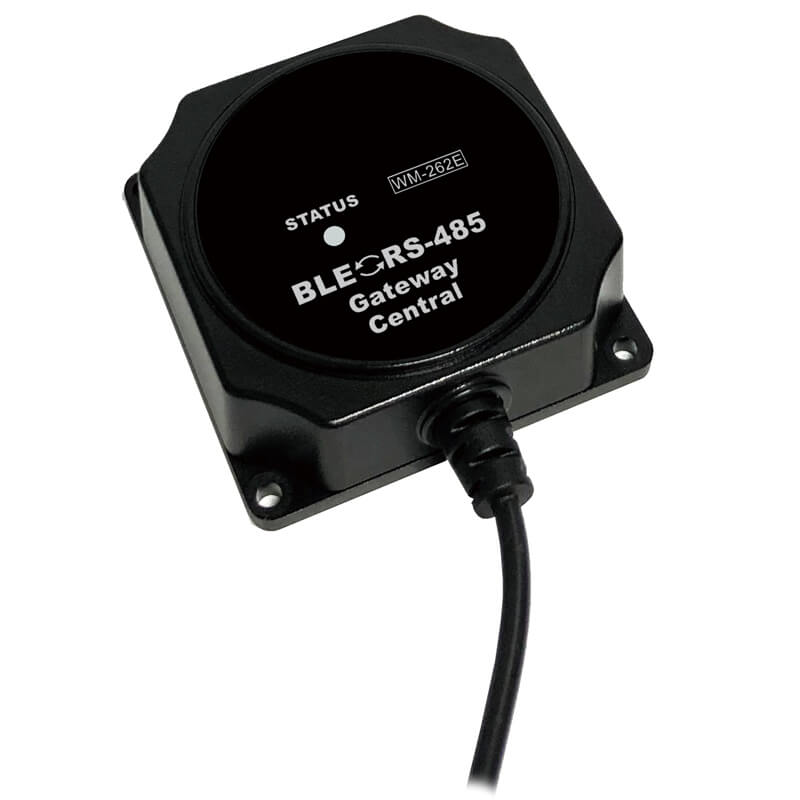

BLE / RS485 Gateway Central

WM-262E

  • BLE to RS-485 MODBUS RTU gateway.
  • 2 way wireless RS-485 bridge (between Peripheral and Central).
  • Small and waterproof design.
  • Built-In or external antenna.
  • Wide voltage operation.
  • RS-485 interface.
  • AUX Power output for general purpose such as plug-in sensor, or other sub system.
Description

WM-26XX series offers the BLE RS-485 waterproof industrial wireless mini-gateway, which is suitable for replacing area with the wall barrier and difficult wiring .
Mini-gateway is designed the waterproof and dustproof.
Building-in advanced BLE can resist the external interference and perform the serial communication. In addition to enabling to communicate between Central and Peripheral, it can be connected by the mobile phone, tablet and other Bluetooth host device.
RS-485 MODBUS RTU’s industrial interface is available that can connect to the existing industrial control host (ex. PLC). Also provides RS-232 to allow users to connect devices with different interfaces.
Supply 5V DC/200mA output power for use in external subunits, which is much suitable as the basic equipment for the industrial Internet of things.

Specification

Product Type: Mini
Air Stream Protocol: BLE 4.2
Operating Frequency: 2.4GHz
Sensitivity: Up to -93dBm@1Msps
Transmit RF Power: Maximum 4dBm
Interface: RS-485 x 1
RS-485 Protocol: Modbus RTU
Serial Interface Baud Rate: 4800bps / 9600bps / 19200bps / 38400bps / 57600bps / 115200bps / 230400bps
Operating Temperature: -40°C ~ 85°C
Dimensions: 5.7 x 5.7 x 2.05 cm
Weight: 85 g
Input Power Supply: 12V ~ 30V DC
Output Power Supply: 5V DC / 200mA (Max.)
Power Consumption: 7mA@24V
Application Function: 2 Way Wireless RS-485 Bridge
Special Specification: Flame Retardant
